Cagiva Mito Mikuni Tm35 intake manifold
Cagiva Mito Mikuni Tm35 intake manifold
Couldn't load pickup availability

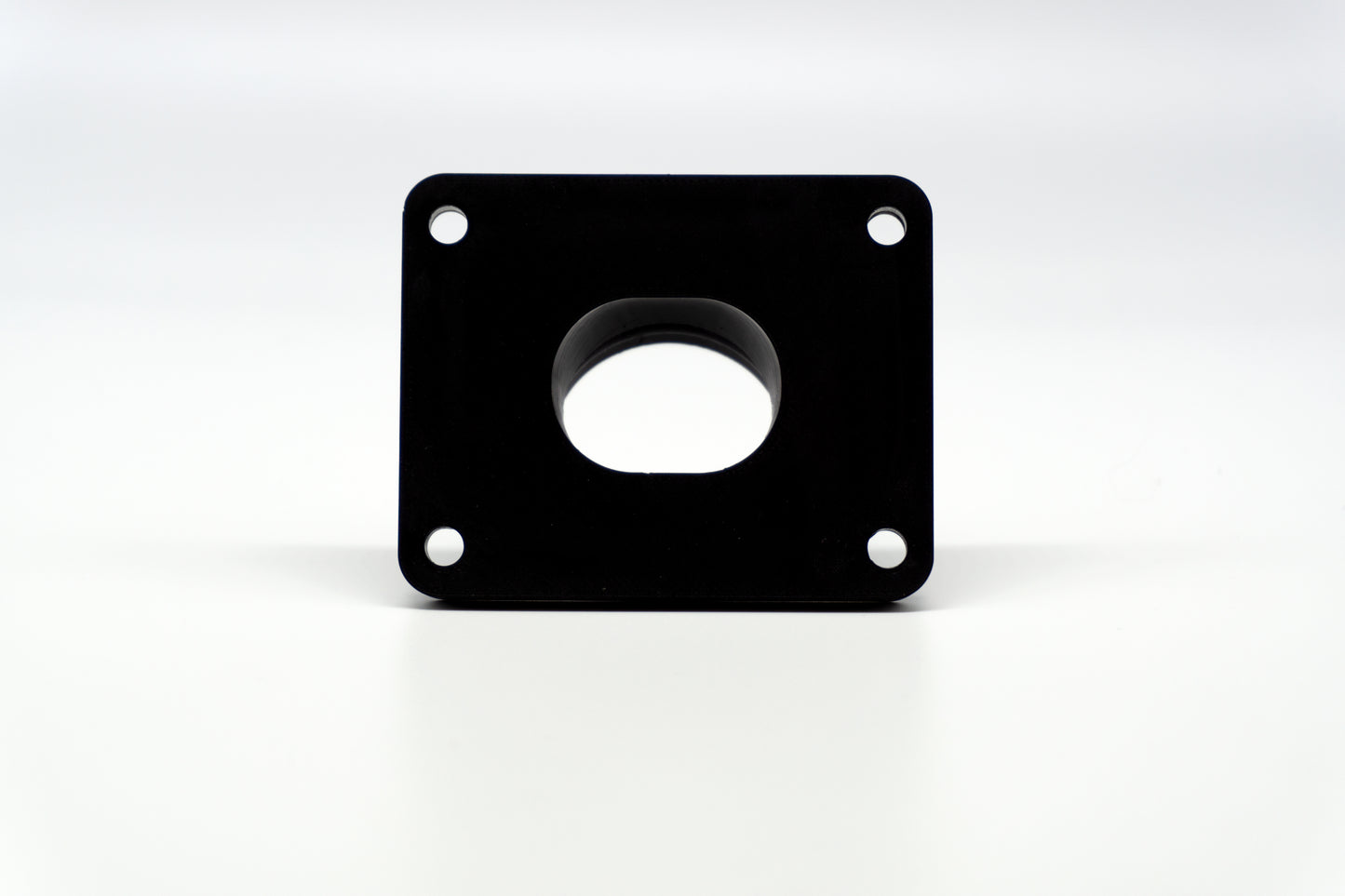

Intake manifold suitable for the Cagiva Mito with the Mikuni TM35 carburettor.
In contrast to the original, the angle and length of the intake manifold have been adjusted, which means that it offers a significantly improved fit and the carburettor no longer needs to be mounted in tension towards the air filter box.
Furthermore, it offers a neat, replaceable gasket made of NBR to ensure a flawless seal when dismantling and reassembling the intake manifold without having to resort to other sealants.
The material used for the intake manifold (TPU) differs from the original material (PU) mainly in the manufacturing process and is also slightly more resistant.
Like the original, a steel frame is integrated inside, which allowed us to maintain the series look.

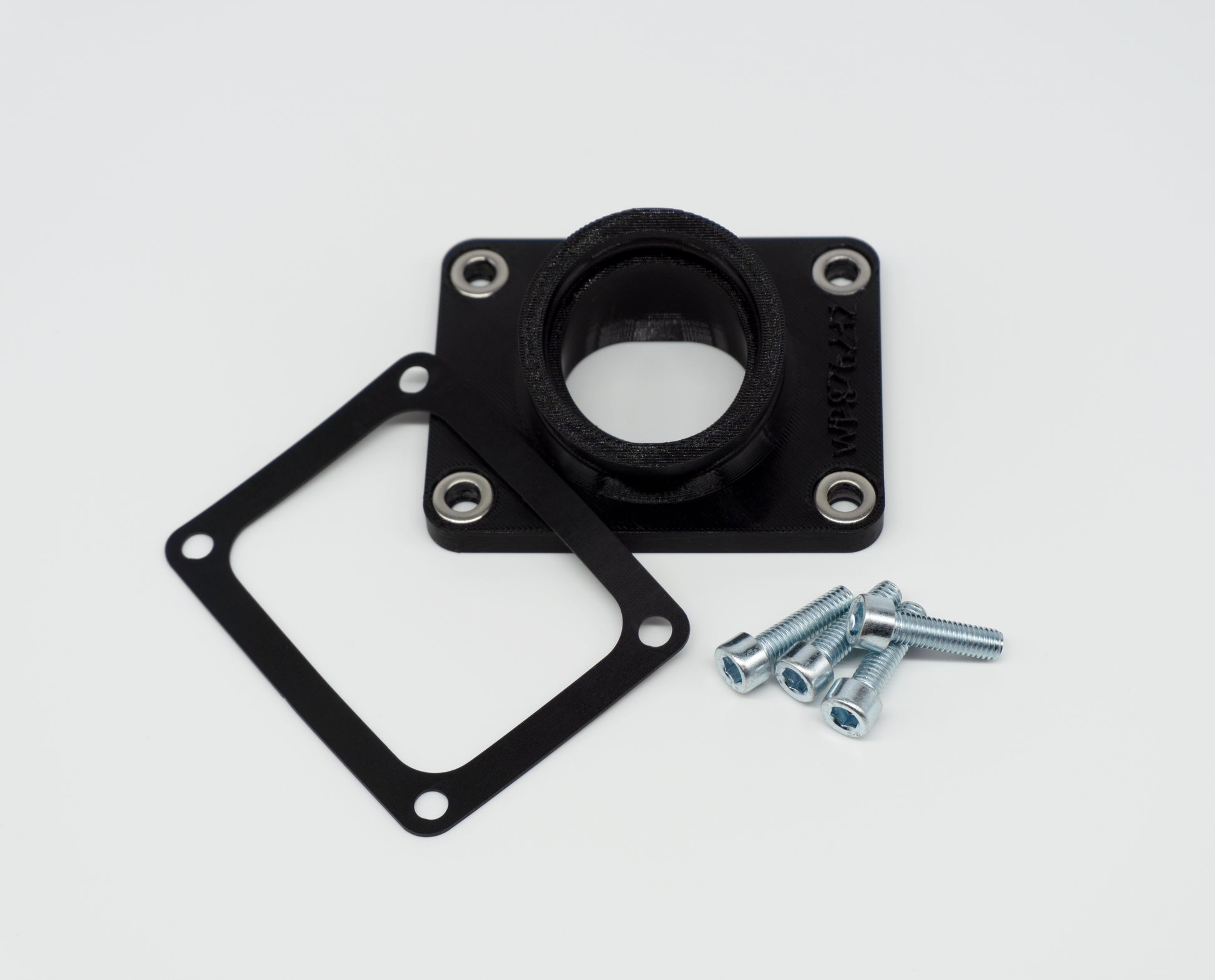

Scope of delivery:
✔️ Intake manifold suitable for Cagiva Mito Mikuni TM35
✔️ Gasket (also available individually - €4.49)
✔️ Hexagon socket screw set
✔️ flat Washers
OEM/OEM reference number: 800077331
Share
Frequently Asked Questions
What material are the products made of?
We currently use:
- TPU (thermoplastic polyurethane) of various Shore hardnesses
...differs from the original material used (PU) not only in the manufacturing process, but has also been specially adapted to our requirements. By adding various additives, it is very resistant to UV rays, oils and fats and can withstand high mechanical loads. Depending on the degree of hardness, it is flexible to varying degrees. Overall, the TPU appears to be more resilient and resistant than the PU used previously.
- nylon-carbon
...is a material reinforced with carbon fibers. Thanks to its outstanding mechanical properties, it can easily withstand very high loads and is also highly heat-resistant.
- ASA (Acrylonitrile Styrene Acrylic Ester)
...is a plastic that is also extremely UV-resistant. This means that the material does not yellow and does not crack or become brittle. It is also very heat-resistant and resistant to petrol and oil.
- Steel and other metals of various compositions
The intake manifolds in particular are unimaginable without an internal high-strength steel construction. For products that exceed the requirements of plastics, we use various processed steels and metal types to meet these requirements.
Our product range continues to grow. And so does the material we select. 📈
How are the products manufactured?
Each product goes through different manufacturing and processing processes. Here is a brief overview:
- Basically, new products must first be designed or constructed in the CAD program. For more complex parts, the dimensions and shape are determined using a 3D scanner. For simpler products, the measurements can be taken manually. Some products are specified (also on request), which means that fundamental changes have to be made.
- We then select the appropriate materials, which vary depending on the application conditions and desired properties.
- Finally, it's starting! Now the first production tests are carried out and the product is tested for the first time on the test object (the appropriate motorcycle / car). We then optimize the product and modify it several times or adapt it to the customer's wishes.
Depending on the product, material and appearance, additional processing steps are carried out (e.g. smoothing the product, CNC laser and milling technology, etc.) ⚙️
Why should I buy the product from you?
Wagner Performance was born out of a passion for motorsport and a determination to innovate the manufacturing of automotive parts.
Our guiding principle is to work transparently and to set our prices fairly. We are available to you at any time and are open to questions and immediate problem solving.
Older vehicles are particularly important to us ❤️
The longevity and continued existence of older cars and motorcycles is our main goal.
We thank you in advance for your trust!
Can other automotive parts also be manufactured?
Sure! Are you missing a part on your motorcycle or is it no longer being produced? Do you have special customization requests for your product? Then please contact us with your request.
This is the best way to reach us:
Email: support@wagner-performance.com
Telephone / Whatsapp Business: +49 1515 3651068
We are open to new ideas and customization requests! 📃
